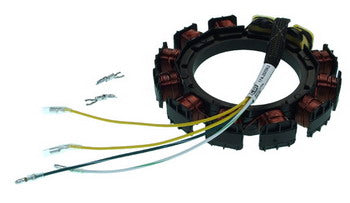

Stator 16A - CF 40-120hp, Mercury 30-125hp, Sport Jet 90-120hp
Stator
Replaces RED OE stator only
16 amp
Installation and Troubleshooting Guide for this part. (Document provided by CDI Electronics Inc)
Fits:
Chrysler / Force
40 HP 1996-99 E138600-E369299
50 HP 1996-99 E138600-E369299
75 HP 1996-99 E138600-E369299
90 HP 1996-99 E138600-E369299
120 HP 1996-99 E138600-E369299
Mercury / Mariner
50 HP CDM only electric start 1997-00 serial number OG531301-OG833000 (this part available as Sierra or Sierra)
75 HP 1996-00 serial number OG438000-OG850499
80 HP Jet serial number OG43800-up
90 HP commercial only 1996-99 serial number OG438000-OPO17000
100-125 HP serial number OG760300-up
120 HP XR Sport Jet 1995-97 serial number E141089-E315900
Replaces: 398-832075A3, 398-832075A4, 398-832075A5, 398-832075A6, 398-832075A12, 398-832075A17, 398-832075A21, 398-832075T18, 398-9873A19, 398-9873A22, 398-9873A28, 18-5870, 9-25507, 174-2075K2
Notice: We recommend these stators be used with the CDM Module Systems only. If the engine uses a standard switch box and has the red stator adapter installed, remove the adapter and use either the 174-8778 (9 amp) or 174-9710 (16 amp) stator.
PLEASE NOTE: This item may fit additional models to those listed above. Please DO NOT order based solely on application info above. You MUST compare the OEM number of the part for your engine to those listed above to ensure correct fitment of this part for your application! Failure to order this way will likely lead to the wrong part being ordered!
